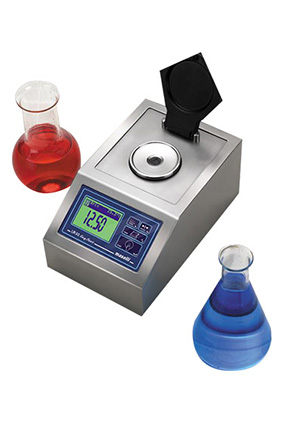

LR02 – 实验室折光仪
Bx / nD / HFCS / 用户自定义
描述
LR-02折光仪是按照精确测量、坚固、紧凑、易于在实验室和现场使用而设计的。由于它的电池电源和可携带手柄,非常易于运输和使用,而不需要连接到一个主电源。它的防水键盘和不锈钢结构意味着它可以安全地直接在生产区域使用。LR-02折光仪测量样品的折射率并计算共浓度(Brix或用户单位),在带背光的液晶单元上显示信息,并将记录的数值发送到可选的外部打印机或个人电脑上。该设备采用了最先进的技术,如蓝宝石棱镜、LED长寿命光源、高分辨率的数字光学CCD传感器等,保证了高水平的精方式和可靠性。
Technical features
Technical features
Application: | Measurement of liquid products in laboratories in the Food, Chemicals, Textile, Petrochemical industries, wineries, etc. |
Measurement limits: | 1.3300…1.5318 nD 0…95 Brix |
Accuracy: | (1.3300…1.3811 nD): 0.00007 nD (0…30 Brix): 0.05 Brix (>1.3811…1.5318 nD): 0.00014 nD (>30…95 Brix): 0.1 Brix |
Measurement scales | N° 5 measurement scales selectable from the keypad: nD. BRIX; the “BRIX” scales refers to the nD/Bx ICUMSA (1974) conversion tables. HFCS42 and HFCS55 with adjustable Zero value. N°1 “USER” scales totally configurable from the keypad. |
Product temperature: |
5…45 °C with automatic compensation of measured temperature by means of ceramic “Pt1000” sensor, Class “B” according to IEC751; compensation for “User” scale ranges refers to the values set on the utility software |
Quantity of analyzed sample: |
~3 cc for analysis |
